We are here to help troubleshoot Wi-Fi issues and wiring related to the Rachio along with complete sprinkler and irrigation support. To mark where you want to install your rachio 3.

Love Rachio Smart Wifi Sprinkler Controller Review Haus Of Benuska

7 Mounting Template 8 Connect your wires 9 Create an account 10 Connect to Wi-Fi 11.

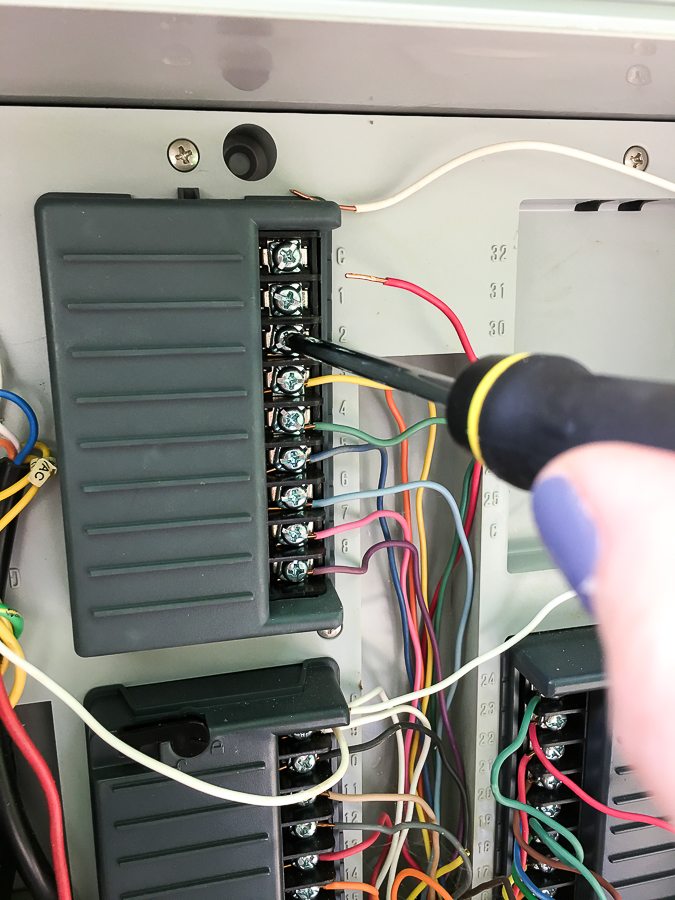

. The Rachio 3 has streamlined hardware for quick and easy installation. Switching from Rain Bird ESP-TM2 to Rachio 3 Wiring Help - Before You Help Convert hunter pro c to rachio 3 - Wiring - Rachio. Photograph the wiring inside your existing controller to reference during installation.

Photograph the wiring inside your existing controller to reference during installation. Up to 4 cash back Rachio 3. Overall you seem to have three common white wires though some rust can be seen.

9 Images about Multiple Rachio Controllers with Shared Command and Master Valve. Supports 24 5 GHz routers. Insert sprinkler wire through the opening on the base.

Wire should come out easy. 5 Mark screw locations 6 In with the new. Connect the wires to the corresponding terminal locations.

Drill holes at marked locations for the anchors. 4 Out with the old. Deliver all the water your plants need with the Rachio 3 Smart Sprinkler Controller and the easy-to-use Rachio mobile app.

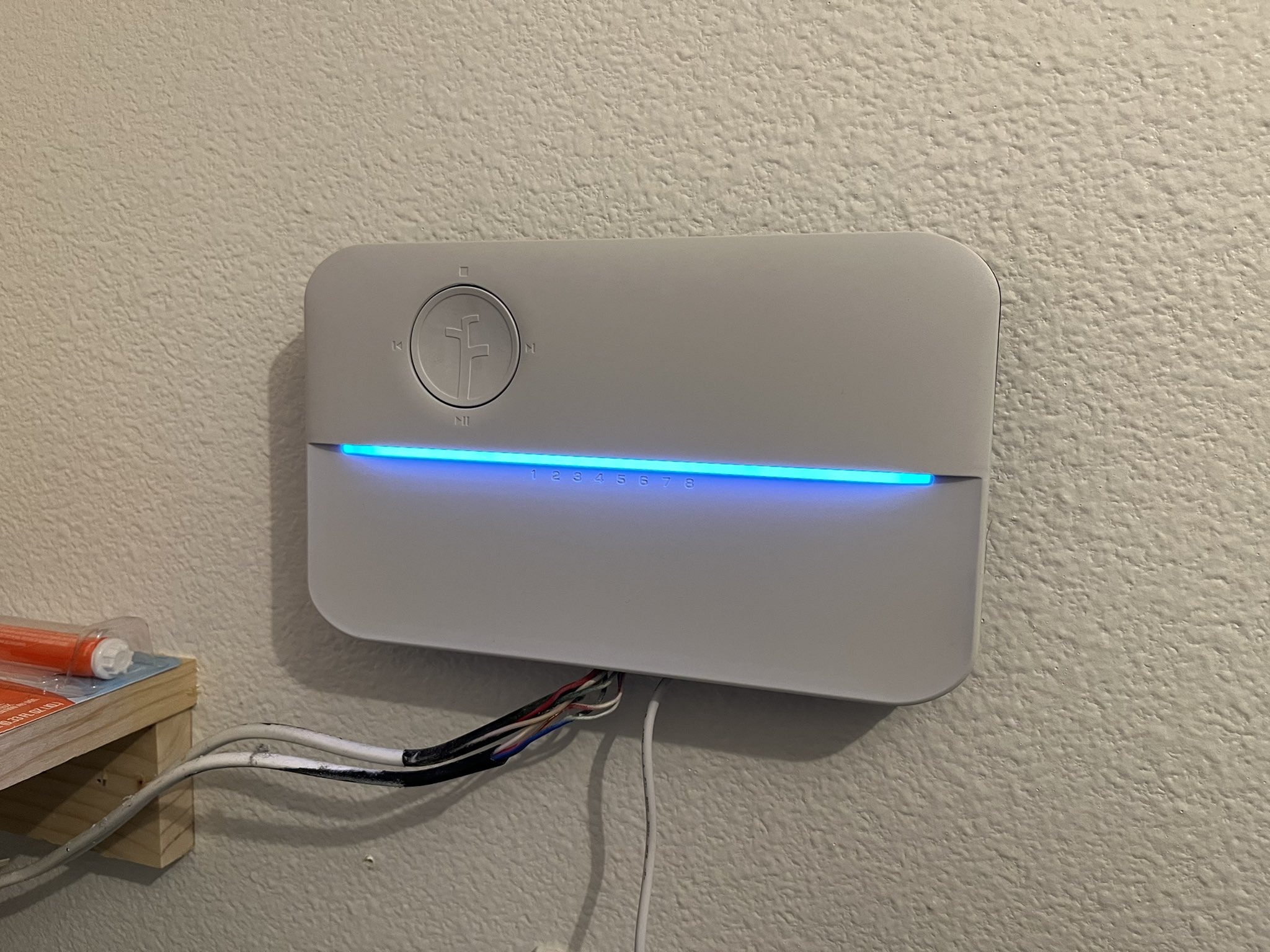

Tommy Cowett shows the easy install of the new Rachio 3 Smart irrigation controller. The Hunter wiring is already stepped down to 24 VAC by a. Multiple Rachio Controllers with Shared Command and Master Valve.

There is nothing I could find anywhere on how to properly remove wires big fail. He shows the mounting and wiring. Rachios first controller for pros.

Wrap all wire connections with electrical tape for a secure connection. Remove your old controller from the wall. You can easily create tailored and efficient smart schedules based on the specific needs of your yard.

Black or red hot to black and green ground wire to the bare copper wire from the junction box. Check out how easy it is to install the new Rachio 3 Smart Sprinkler Controller. The Rachio outdoor enclosure is designed for 120 VAC wiring - the black is the hot wire the white is the neutral wire and the green is the ground wire.

Rachio Gen 2 Smart Sprinkler Controller User Guide December 18 2021December 18 2021. 2 What youll need 3 Need some help. Rachio Gen 2 Smart Sprinkler Controller User Guide Contents hide 1 Whats in the box.

Remove your old controller from the wall. The Rachio 3 Smart Sprinkler Controller expands on our best-selling Rachio Generation 2 Smart Sprinkler Controller with a sleek new look game-changing technology and upgraded Weather Intelligence Plus. The R3 Pro Series Controller provides a professional-grade installation experience for a variety of applications.

JLo October 11 2017 803pm. Smart wire terminals sense which zones are active and. Use a 316 inch bit.

Along with troubleshooting we can support. Try using an ice pick or a finish nail and push hard. Step 1 need some help.

Putting power into the 24 VAC - and terminals can cause component failure from too much current in the. Red Yellow wire connected to 24V terminals are for power of your old controller Rachio uses its own power supply so these wires should NOT be connected to the new controller. Out with the old and in with the new.

Rodneya October 11 2017 1257am 2. The Rachio adapter then plugs into the plug in the enclosure. Twist the wire from the supply side and the Rachio enclosure together in a clockwise direction using a connector cap.

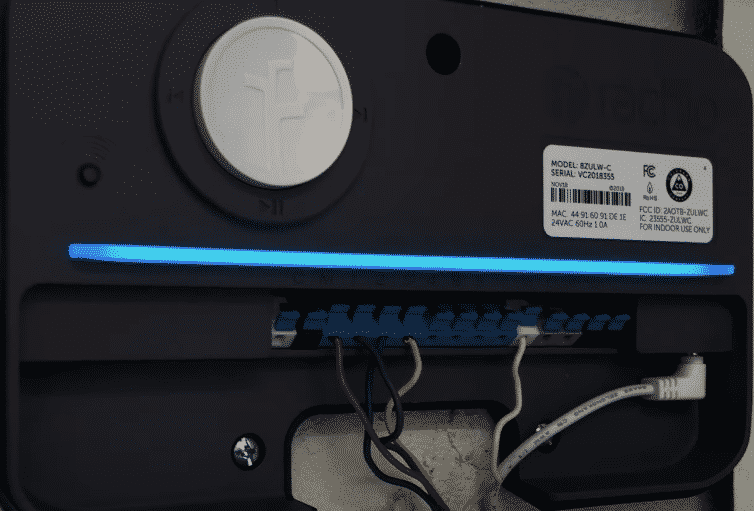

Insert the power connector into the controllers power port in the lower right-hand corner of the wiring bay. If you moved wires over from another brand of controller that were labeled that on the other controller you are likely putting power into the Rachio unit from there. Thats not a good permanent solution.

Connect the power cord.
